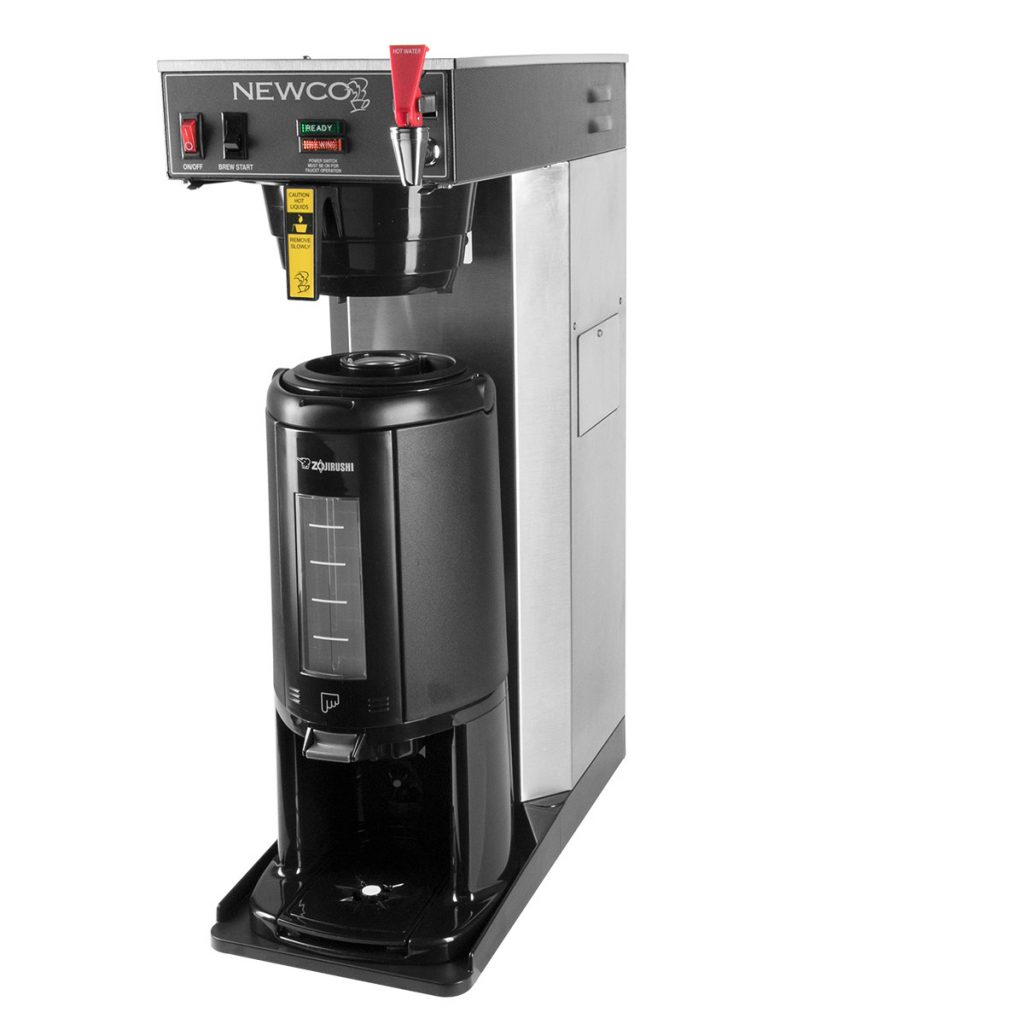

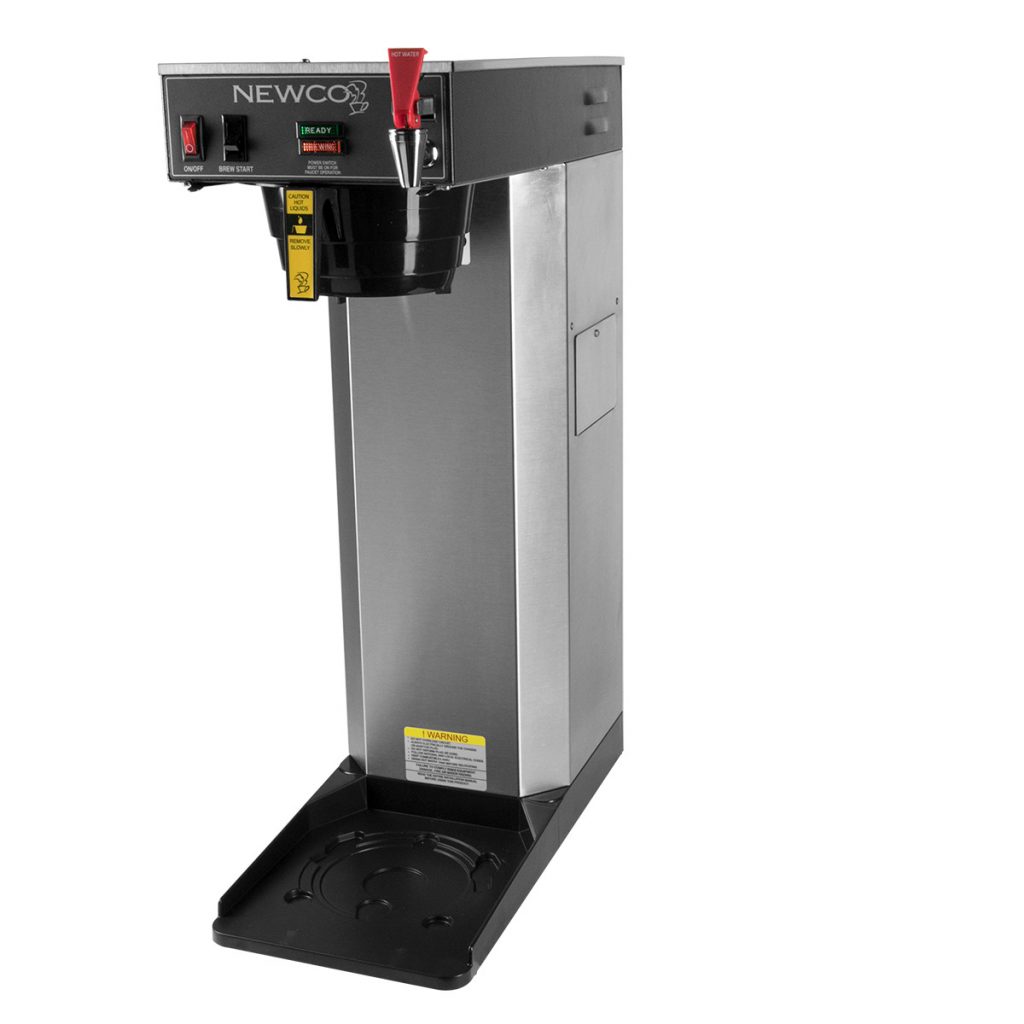

Newco ACE-D is the tall dispenser model for the ACE Series. The ACE-D brews into a thermal vessel with a 15 cup capacity. Coffee stays warm for 2 hours, or more, without breaking down. This model is designed for large locations like a sitting room environment, cafeteria, small or medium size convenience stores, or restaurants.
The Ace series gives your customers a sleek, compact brewer, loaded with advanced brewing technology that includes: a water level detection system that eliminates short pots, an adjustable brew safety light that flashes when brewing, and a gravity hot water faucet system that can dispense hot water without altering the brew volume. The series is quite versatile and continues to be one of our top sellers. All ACE models come equipped with Newco’s PDS valve technology.
Style | Brew Operations | Heating System | Tank System | Water Delivery | Faucet |
|---|---|---|---|---|---|
Automatic | Analog Temp/ Digital Timer | Tank Reservoir | Open | Displacement | Gravity |
Item | Model | Height | Width | Depth | Ship Wt | Volts | Watts | Amps |
|---|---|---|---|---|---|---|---|---|
108455-B | ACE-D | 26.3" | 8.5" | 17.6" | 27 lbs. | 120V | 1750 | 14.6 |
Specs | Manuals | Parts Catalogs | Photo Galleries |
|---|---|---|---|
| Weight | 24.8 lbs |
|---|---|
| Dimensions | 23.25 × 13.5 × 28.62 in |
| Vessel | |
| Brews | |
| Style | |
| Profile | |
| Voltage | |
| Modular |
